Beskrivelse

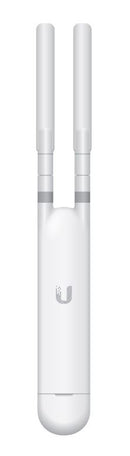

Model: UAP-AC-M - UAP-AC-M-EU - t Indoor/Outdoor
Ønsker man at bestille 1 kasse, skal man bestille 10 stk af denne vare.
24V Passive PoE
802.3af PoE:
Alternative A
http://dl-origin.ubnt.com/datasheets/unifi/UniFi_AC_Mesh_DS.pdf
UniFi is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. The UniFi AC Mesh APs have a refined industrial design and can be easily installed using the included mounting hardware.
Wireless Uplink functionality enables wireless connectivity between APs for extended range. One wired UniFi AP uplink supports up to four wireless downlinks on a single operating band, allowing wireless adoption of devices in their default state and real-time changes to network topology.
For devices that support Plug & Play Mesh, this functionality is extended to allow multi-hop wireless uplink – so wirelessly uplinked APs can support uplink to other wirelessly uplinked APs.
Mesh Multi-Hop A large outdoor area, such as a park with minimal infrastructure, can take advantage of a mesh network comprised of the UniFi AC Mesh models.
Omnidirectional Coverage, Indoors/Outdoors The UniFi AC Mesh AP includes adjustable dual-band omni antennas, and you have the option to use any 5 GHz omni antenna for spot-beam coverage in high-density locations with numerous APs and clients, like a conference hall.
Specifications:
UAP-AC-M
Dimensions
353 x 46 x 34.4 mm (13.9 x 1.81 x 1.35)
Weight
152 g (5.36 oz) with Antennas
Networking Interface
(1) 10/100/1000 Ethernet Port
Buttons
Reset
Power Method
24V Passive PoE (Pairs 4, 5+; 7, 8 Return);
802.3af Alternative A (Pairs 1, 2+; 3, 6 Return)
(Supported Voltage Range: 44 to 57VDC)
Power Supply
24V, 0.5A Gigabit PoE Adapter*
Power Save
Supported
Maximum Power Consumption
8.5W
Maximum TX Power
2.4 GHz
5 GHz
20 dBm
20 dBm
Antennas
2.4 GHz
5 GHz
(2) External Dual-Band Omni Antennas
3 dBi
4 dBi
Wi-Fi Standards
802.11 a/b/g/n/ac
Wireless Security
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID
Up to Four per Radio
Mounting
Wall/Pole/Fast-Mount (Kits Included)
Operating Temperature
-30 to 70° C (-22 to 158° F)
Operating Humidity
5 to 95% Noncondensing
Certifications
CE, FCC, IC
Advanced Traffic Management
VLAN
802.1Q
Advanced QoS
Per-User Rate Limiting
Guest Traffic Isolation
Supported
WMM
Voice, Video, Best Effort, and Background
Concurrent Clients
250+
Supported Data Rates (Mbps)
Standard
Data Rates
802.11ac
6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
