Beskrivelse

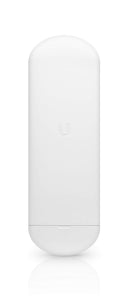

Classic NanoStation design with updated proprietary airMAX ac chipset and dedicated management Wi-Fi for easy U Mobile app support and fast setup. Excellent solution for a simple PtP bridge or use as a PtMP station (CPE).
NS-5AC / NS5AC
Dimensions 179 x 77.5 x 59.1 mm (7.05 x 3.05 x 2.33)
Weight 0.18 kg (6.35 oz)
Processor MIPS 74K
Memory 128 MB
Gain 13 dBi
Channel Bandwidth 10/20/30/40/50/60/80 MHz
Networking Interface 10/100/1000 Mbps Ethernet Port
LEDs Power, Ethernet, (4) Signal Strength
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Power Supply 24V, 0.5A Gigabit PoE Supply (Included)
Max. Power Consumption 8.5W
Supported Voltage Range 24V ±10%
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
NS-5AC / NS5AC
Dimensions 179 x 77.5 x 59.1 mm (7.05 x 3.05 x 2.33)
Weight 0.18 kg (6.35 oz)
Processor MIPS 74K
Memory 128 MB
Gain 13 dBi
Channel Bandwidth 10/20/30/40/50/60/80 MHz
Networking Interface 10/100/1000 Mbps Ethernet Port
LEDs Power, Ethernet, (4) Signal Strength
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Power Supply 24V, 0.5A Gigabit PoE Supply (Included)
Max. Power Consumption 8.5W
Supported Voltage Range 24V ±10%
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
