Beskrivelse
ER-X
Ønsker man at bestille 1 kasse, skal man bestille 20 stk af denne vare.
https://dl.ubnt.com/datasheets/edgemax/EdgeRouter_X_DS.pdf

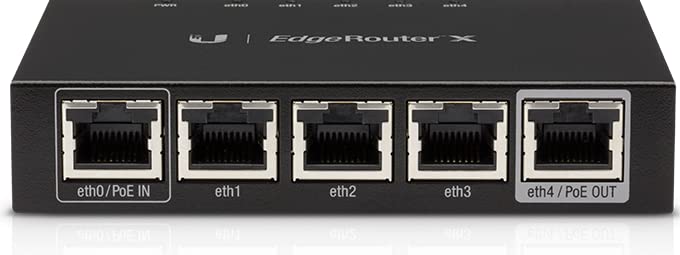

Ubiquiti Networks introduces the EdgeRouter™ X, part of the EdgeMAX® platform. The EdgeRouter X combines carrier-class reliability with excellent price-to-performance value in an ultra-compact form factor.
Two models of the EdgeRouter X are available. The standard model, the ER-X, can be powered by an external power adapter or 24V passive PoE input. A passive PoE passthrough option1 is available to support a single airMAX® device2. The SFP model, the ER-X-SFP, is powered by an external power adapter. The five Gigabit RJ45 ports support 24V passive PoE output for airMAX or UniFi® devices, while its SFP port provides fiber connectivity to support backhaul applications.
Powered by a proprietary and intuitive graphical interface, EdgeOS™, every EdgeRouter X can easily be configured for the routing, security, and management features required to efficiently run your network. For advanced network professionals, an integrated CLI is available for quick and direct access using familiar commands.
Features:
• (5) Gigabit RJ45 ports
• Passive PoE passthrough option
• Power via 24V passive PoE or power adapter
• Ports configurable for line-rate, Layer-2 switching
• 130 kpps for 64-byte packets
• 1 Gbps for 1518-byte packets
Specifications:
ER-X
Dimensions
110 x 75 x 22 mm (4.33 x 2.95 x 0.87)
Weight
175 g (6.17 oz)
Max. Power Consumption
5W
Power Input
12VDC, 0.5A Power Adapter (Included) or 24V Passive PoE
Power Supply
External AC/DC Adapter
Supported Voltage Range
9 to 26VDC
Button
Reset
LED
Power, Ethernet 0-4
Processor
Dual-Core 880 MHz, MIPS1004Kc
System Memory
256 MB DDR3 RAM
Code Storage
256 MB NAND
Certifications
CE, FCC, IC
Wall-Mount
Yes
ESD/EMP Protection
Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature
-10 to 45° C (14 to 113° F)
Operating Humidity
10 to 90% Noncondensing
Networking Interfaces
Data/PoE Input Port
(1) 10/100/1000 RJ45 Port
Data Ports
(3) 10/100/1000 RJ45 Ports
Data/PoE Passthrough Port
(1) 10/100/1000 RJ45 Port
Ønsker man at bestille 1 kasse, skal man bestille 20 stk af denne vare.
https://dl.ubnt.com/datasheets/edgemax/EdgeRouter_X_DS.pdf
Ubiquiti Networks introduces the EdgeRouter™ X, part of the EdgeMAX® platform. The EdgeRouter X combines carrier-class reliability with excellent price-to-performance value in an ultra-compact form factor.
Two models of the EdgeRouter X are available. The standard model, the ER-X, can be powered by an external power adapter or 24V passive PoE input. A passive PoE passthrough option1 is available to support a single airMAX® device2. The SFP model, the ER-X-SFP, is powered by an external power adapter. The five Gigabit RJ45 ports support 24V passive PoE output for airMAX or UniFi® devices, while its SFP port provides fiber connectivity to support backhaul applications.
Powered by a proprietary and intuitive graphical interface, EdgeOS™, every EdgeRouter X can easily be configured for the routing, security, and management features required to efficiently run your network. For advanced network professionals, an integrated CLI is available for quick and direct access using familiar commands.
Features:
• (5) Gigabit RJ45 ports
• Passive PoE passthrough option
• Power via 24V passive PoE or power adapter
• Ports configurable for line-rate, Layer-2 switching
• 130 kpps for 64-byte packets
• 1 Gbps for 1518-byte packets
Specifications:
ER-X
Dimensions
110 x 75 x 22 mm (4.33 x 2.95 x 0.87)
Weight
175 g (6.17 oz)
Max. Power Consumption
5W
Power Input
12VDC, 0.5A Power Adapter (Included) or 24V Passive PoE
Power Supply
External AC/DC Adapter
Supported Voltage Range
9 to 26VDC
Button
Reset
LED
Power, Ethernet 0-4
Processor
Dual-Core 880 MHz, MIPS1004Kc
System Memory
256 MB DDR3 RAM
Code Storage
256 MB NAND
Certifications
CE, FCC, IC
Wall-Mount
Yes
ESD/EMP Protection
Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature
-10 to 45° C (14 to 113° F)
Operating Humidity
10 to 90% Noncondensing
Networking Interfaces
Data/PoE Input Port
(1) 10/100/1000 RJ45 Port
Data Ports
(3) 10/100/1000 RJ45 Ports
Data/PoE Passthrough Port
(1) 10/100/1000 RJ45 Port
