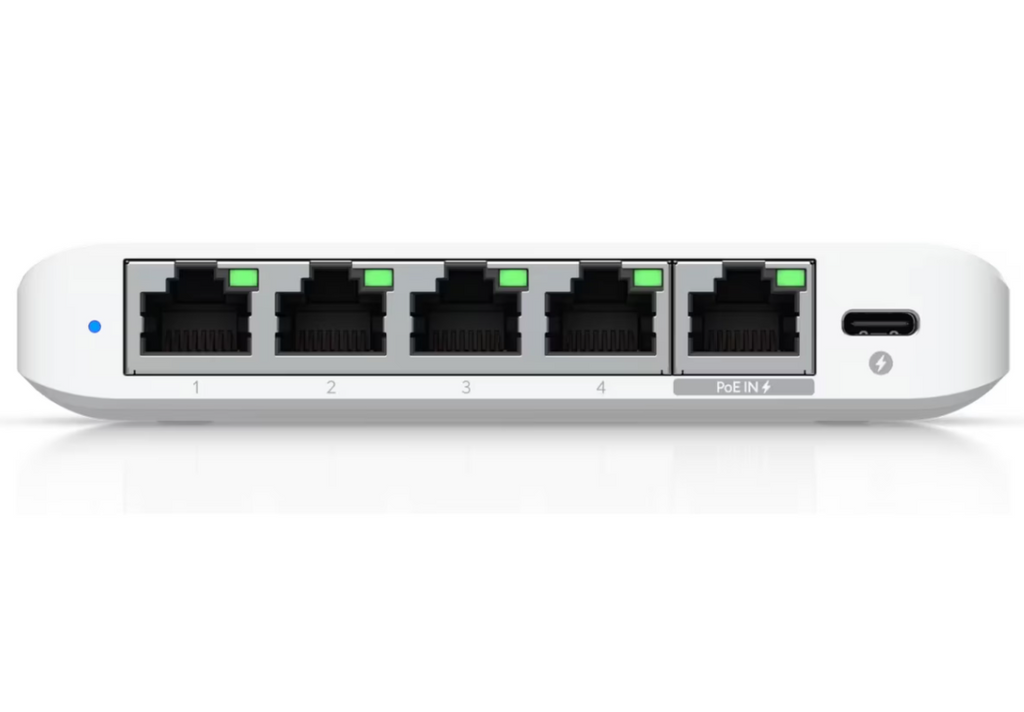

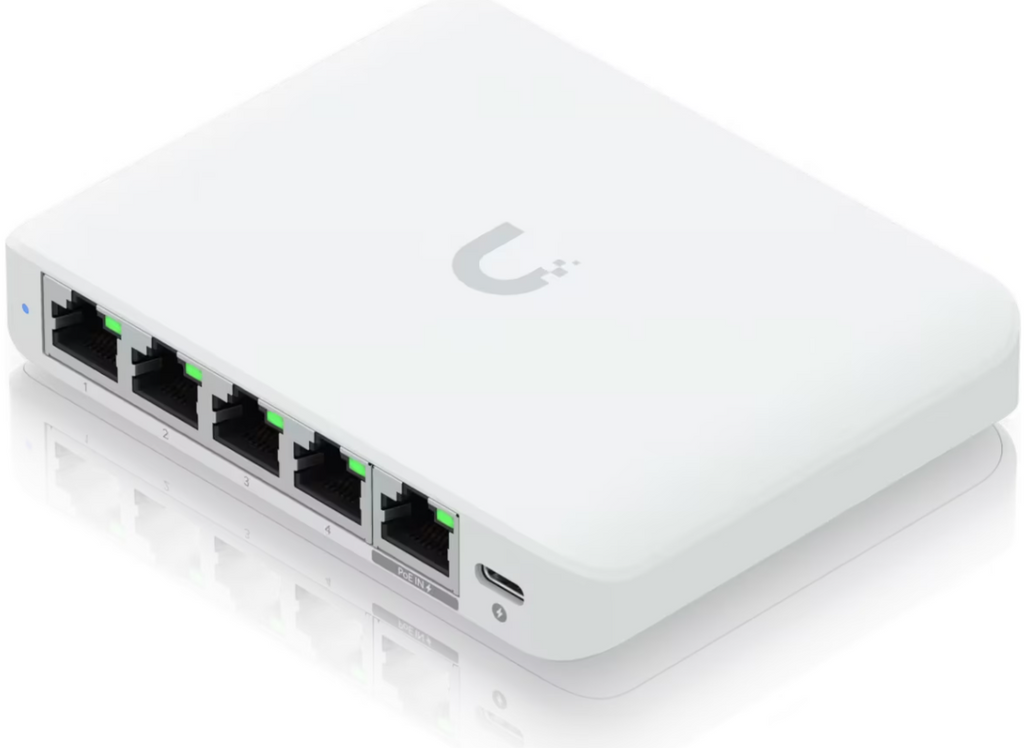

Flex Mini 2.5G
Compact, 5-port 2.5G switch that can be powered with PoE or a USB-C adapter.
| Category | Specification |
|---|---|
| Overview | |
| Dimensions | 117.1 x 90 x 21.2 mm (4.6 x 3.5 x 0.8") |
| Port Layout | 5 x 2.5 GbE RJ45 (2.5G/1G/100M/10M) |
| Form Factor | Compact desktop |
| Performance | |
| Switching Capacity | 25 Gbps |
| Total Non-Blocking Throughput | 12.5 Gbps |
| Forwarding Rate | 19 Mpps |
| Supported VLANs | 256 |
| MAC Address Table Size | 4,000 |
| Layer 2 Features | |
| STP & RSTP | Yes |
| Egress Rate Limit | Yes |
| Flow Control | Yes |
| Storm Control | Yes |
| Multicast & Broadcast Rate Limiting | Yes |
| Port Isolation | Yes |
| Port Mirroring | Yes |
| Jumbo Frames | Yes |
| Loop Protection | Yes |
| Hardware | |
| Max. Power Consumption | 5W (AC/DC input), 6.4W (PoE input) |
| Power Method | USB Type-C (5V DC, 1A), PoE |
| Power Input Method | USB Input, PoE |
| Power Supply | AC/DC, external, 5W |
| Supported Voltage Range | 4.8–5.2V DC (USB), 44–57V (PoE) |
| Management Ethernet | Yes |
| Weight | 206 g (7.3 oz) |
| Enclosure Material | Polycarbonate |
| Ambient Operating Temperature | -20 to 45° C (-4 to 113° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel |
| Software | |
| Application Requirements | UniFi Network version 8.6.9 and later |
