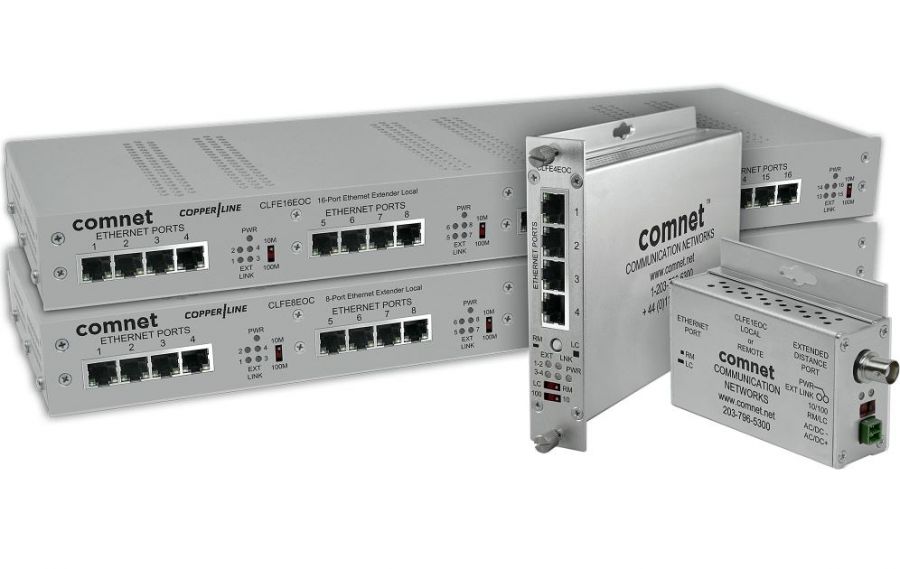

Product information 16CH ETH OVER UTP WITH PASS-THRU POE
Sixteen Channel Ethernet over UTP with IEEE 802.3af 15.4W Pass-Through PoE, 10/100Mbps, Industrial, Local Unit, 1U 19inch
Gross weight (KG) 2.064
Purchase unit PCE
Minimum order 1
Country of origin US
Material code CLFE16EOU
Net weight 1.964
Statistical code 85176200
ECCN 5A991
FEATURES
* Transmits individual Ethernet data channels with Passthrough PoE over standard UTP or Coaxial cable
* Extends Ethernet up to 3,000 feet (914 m) at 10 Mbps or
2,000 feet (610 m) at 100 Mbps over UTP cable
* Extends Ethernet up to 5,000 feet (1,524 m) at 10 Mbps or
2,000 feet (610m) at 100 Mbps over Coaxial cable
* Extended temperature operation from -40°C to +75°C
* Extended Pass-through PoE meets the IEEE 802.3af standard
for Power over Ethernet
* Full 10/100 Mbps Bandwidth
* Supports Multicast, Unicast and Jumbo Frame
* Symmetric Bandwidth provides consistent upload and
download with virtually zero packet loss over the total usable
distance
* Type tested to RFC-2544 TCP/IP network bandwidth packet
transmission standards
* User-selectable data rate for maximum bandwidth and
transmission distance utilization
* Complies with all major IEEE standards and RFC network
protocols for UDP, TCP/IP, HTTP/HTTPs
* Designed to meet full compliance with the environmental
requirements (ambient operating temperature, mechanical
shock, vibration, humidity with condensation, high-line/lowline voltage conditions and transient voltage protection) of
NEMA TS-1/TS-2 and the Caltrans Specification for Traffic
Signal Control Equipment.
* Designed and manufactured in the USA
* LED status indicators confirm operating status
* Available in small-size, ComFit interchangeable stand
alone or 1RU high rack mounted models
Sixteen Channel Ethernet over UTP with IEEE 802.3af 15.4W Pass-Through PoE, 10/100Mbps, Industrial, Local Unit, 1U 19inch
