Beskrivelse

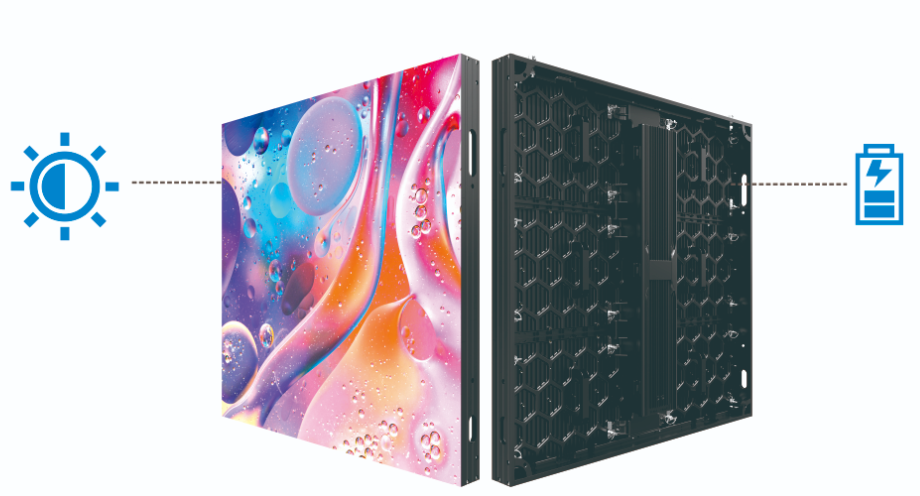

ADisplay LED P3.9 288x192cm IP65
Komplet LED skærm med alt hvad der skal benyttes. Absolut højeste kvalitet og nem at montere og betjene. Service kan foregå fra både front og bagside.
Novastar TB50 medfølger og kan styres enten fra PC eller mobiltelefon.
Option: 4G modul til simkort
| Module Specifications | |||
| Pixel pitch | 3.9 mm | ||
| Leds | SMD1921 | ||
| module pixels | 123×82 pixels | ||
| Module size | 480×320×19.5mm | ||

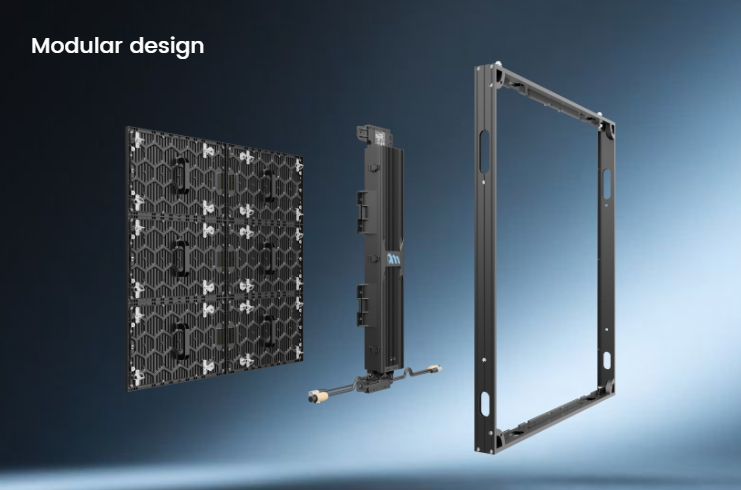

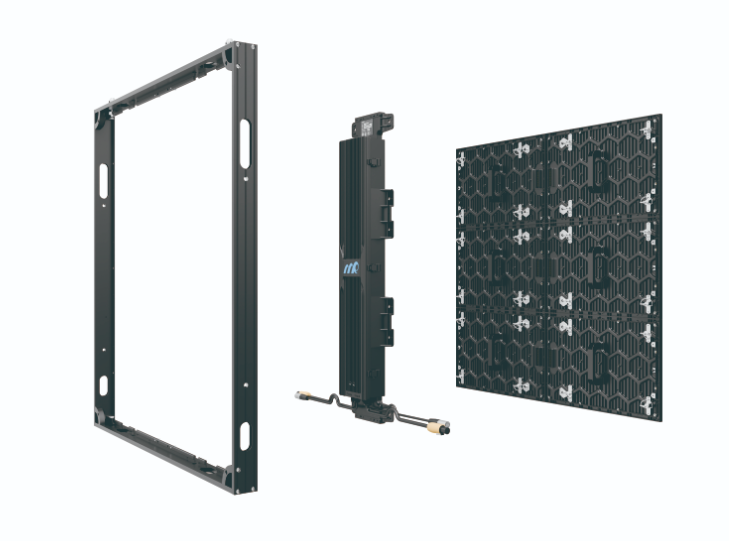

| Cabinet Specification | |||
| Cabinet size | 960×960×97mm | ||
| Cabinet pixels | 246×246 dots | ||
| Module qty | 6pcs | ||
| Pixel Density | 65664 dots/cabinet | ||
| Cabinet materials | Aluminum profile+ Aluminum module backshell |
||
| Cabinet weight | 26KG/cabinet | ||
| Screen Parameters | |||
| Screen size | W2.88m×H1.92m =5.5296m² | ||
| Screen Pixels | 738×492 | ||
| Cabinet qty | W3pcs×H2pcs=6pcs | ||
| Brightness | 6000-6500cd/㎡ | ||
| View distance | ≥3m | ||
| Gray level | 14 bit | ||
| Refresh rate | 7680Hz | ||
| Frequence | 50- 60Hz | ||
| Input | 100 -240 V | ||
| Power comsuption | Max:650W/㎡ Average:220W/㎡ | ||
| MTBF--hours | >10,000 hours | ||
| Life--hours | ≥100,000 hours | ||
| Power supply | CE Power supply | ||
| IP rating | IP67/IP65 | ||
| Operating Temperature | ﹣20℃～65℃ | ||
| Storage Humidity | 10%～95% | ||
| Control syetem | NOVA | ||

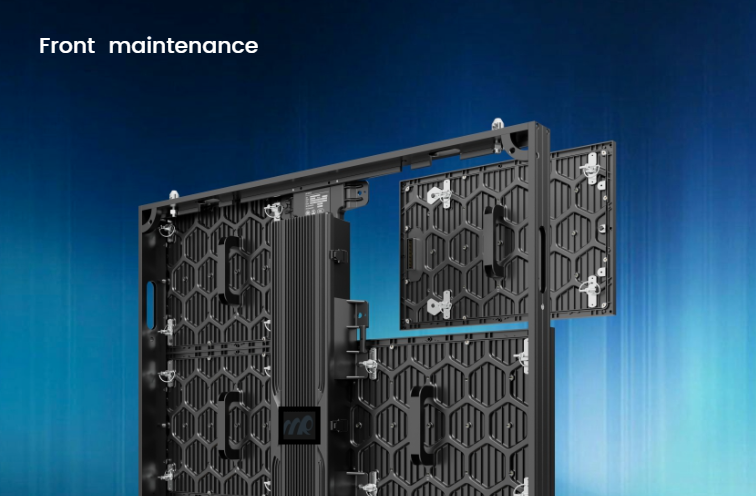

| Maintenance | Front maintenance | ||
