Beskrivelse

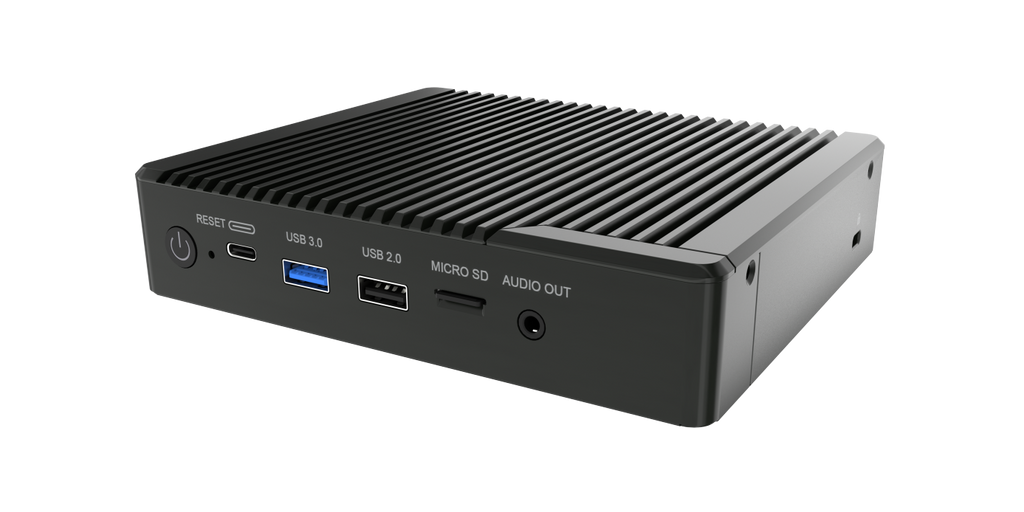

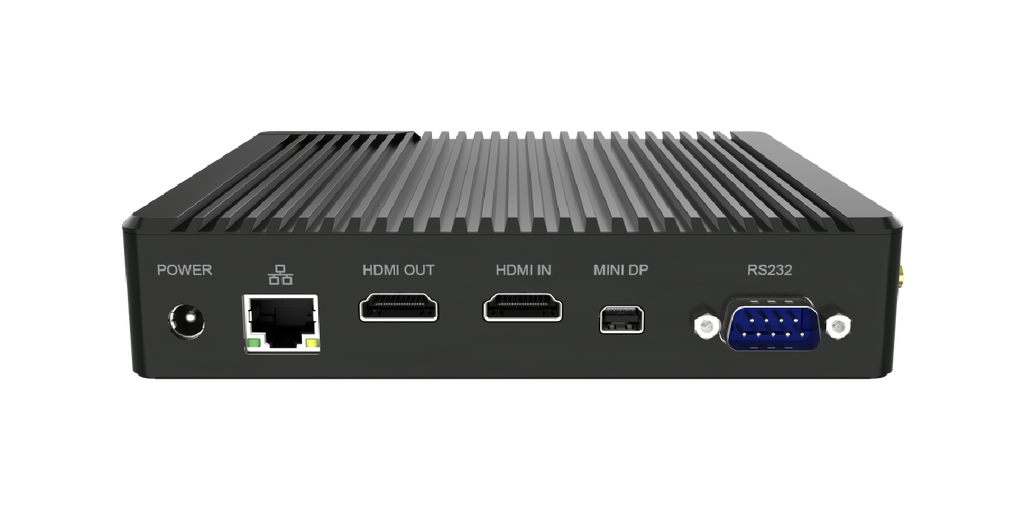

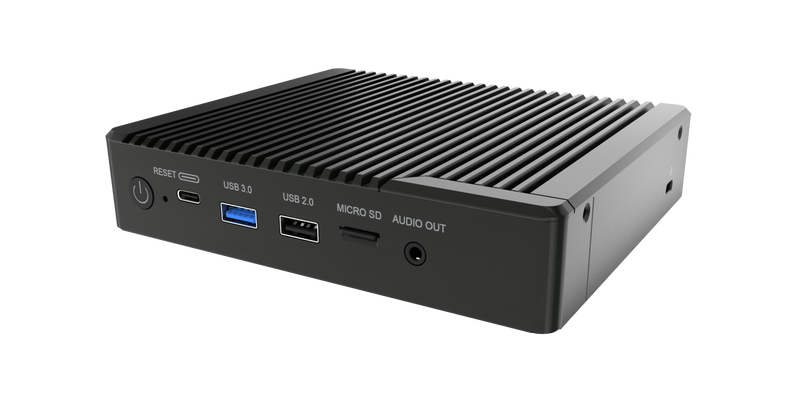

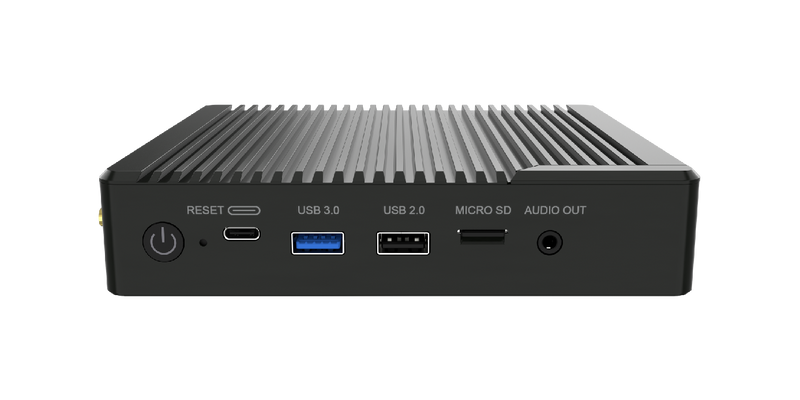

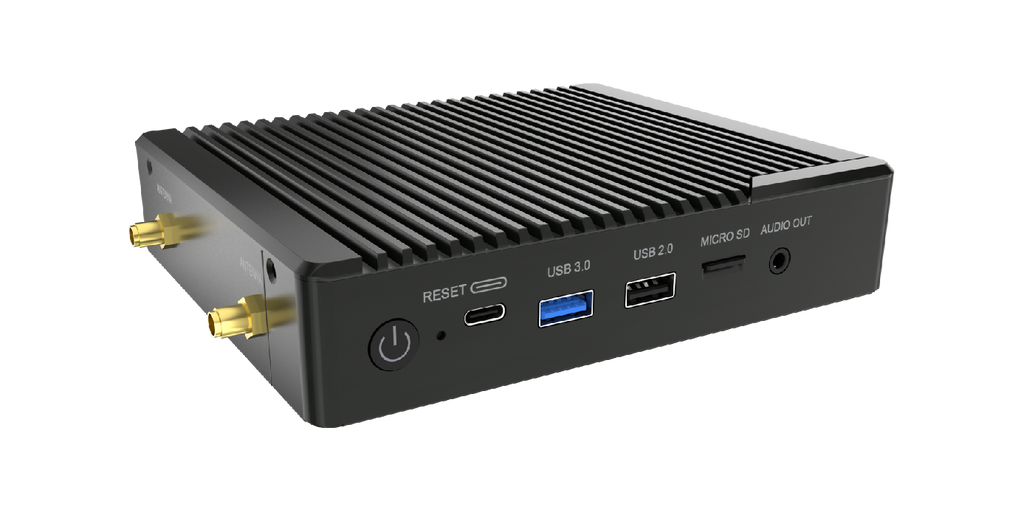

ARM platform Media Player
Based on the RK3568 platform design, quad-core Cortex-A55 up to 2.0GHz processor, coupled with 4K high-definition display output, is the ideal hardware solution for digital signage, autonomous devices and information distribution systems.
• Based on Ruixin RK3568 platform
• The whole machine adopts fanless design
• Support LPDDR4x 2GB/4GB memory
• Support eMMC5.1 8GB/16GB/32GB storage
• 1 x HDMI2.0-Out, 1 x DP display output, 1 x HDMI-IN
• Support WIFI6 and Gigabit network ports
• 1 x USB3.0, 1 x USB2.0, 1 x Type-C
• 1 x RS232 COM, 1 x MicroSD
• Support Android11 operating system
|
CPU |
CPU |
RK3568 |
|
Frequency |
2.0 GHz |
|
|
Processing units |
4 Cores Cortex-A55 |
|
|
Display |
Graphic card |
ARM Mali-G52 |
|
Multi displays |
Support Dual displays |
|
|
Interface |
1 x HDMI-Out 4K @60Hz, 1 x DP-Out 1920x1080 @60Hz, 1 x HDMI-In 1920x1080 @60Hz |
|
|
Network |
Lan IC |
1 x LAN IC YT8521SC |
|
Lan Interface |
10/100/1000Mbps |
|
|
Lan Connector |
1 x RJ45 |
|
|
Wireless Type |
M.2 Key E 2230 Module |
|
|
Wireless Module |
AW-XB547NF, WIFI-6/BT5.2 |
|
|
I/O interface |
Serial Port |
1 x 9PIN RS232 Connector |
|
USB |
1 x USB3.0, 1 x USB2.0 1 x Type-C |
|
|
Button |
1 x PowerButton, 1 x Recovery Key |
|
|
SD CARD |
1 x Micro SD Card |
|
|
AUDIO |
1 x Audio Out |
|
|
POWER |
1 x 2.5/5.5 DC-IN Connector |
|
|
System |
Memory |
LPDDR4x 4GB |
|
Storage |
Onboard EMMC5.1 16GB/32GB |
|
|
OS |
Android11 |
|
|
WatchDog |
Support |
|
|
Auto Power On |
Support |
|
|
RTC Alarm |
Auto Power On/Off scheduler, a week as a cycle |
|
|
Power Input |
12v 2.5/5.5 DC-In |
|
|
Dimension |
151(L) x 129(W) x 30(H) mm |
|
|
Operating Temp. |
-5~45℃ |
|
|
Operating Humidity |
10%~90% non-condensing |
|
|
Storage Temp |
-20~70℃ |
|
|
Operating Humidity |
5%~95% non-condensing |
