Beskrivelse

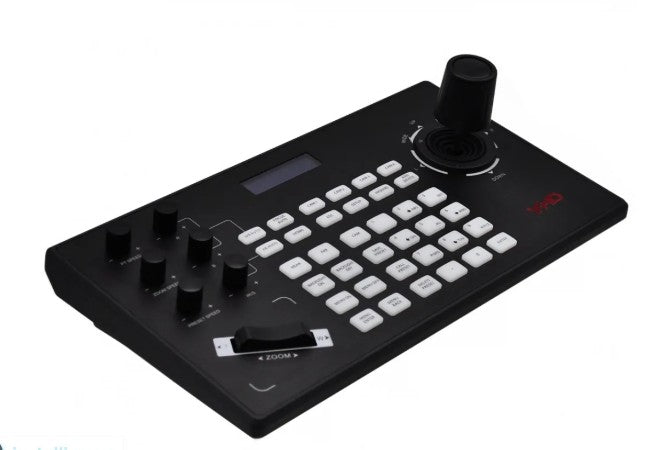

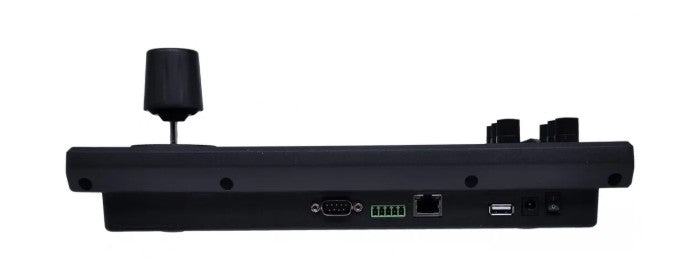

Joystick Controller PoE
Main Features
1) Support network control, with independent IP address.
2) Support VISCA, ONVIF protocol, and VISCA fully compatible.
3) Realize the control of conference camera software, with central control function.
4) It adopts imported variable speed four-dimensional rocker for control, and feels
comfortable. The twisting rocker can control zoom in and out and directly control
the omnidirectional rotation of the conference camera. According to the strength on
the joystick, the speed can be controlled.
5) The zoom control of the conference camera is carried out by a switch shaping
like a ship. Operation is convenient and powerful.
6) Support full-key backlight effect, can be turned on / off independently.
7) Support IE browser to add configuration front-end device parameters.
Model AD-VHD-C100P
Name Keyboard Controller
Interfaces RS422, RS232, network, USB2.0
Protocol VISCA, ONVIF2.4
Display mode LCD
Power Power supply：DC 12V-2A
Power consumption: 6W (max)
Size Dimenison (mm)：320*177*115.5（mm）
Working Environment Environmental Temperature：0℃~55℃ / 14°F~131°F
Humidity：20～80%(No-Condensation)
Storage Environment Environmental Temperature：-10℃~60℃ / 14°F~140°F
Humidity：0~90%(No-Condensation)
Warranty 1 year
